LILYGO® T-Display-S3 Touch, ESP32-S3 R8 Wifi BLE 1.9 inch

LILYGO® T-Display-S3 Touch, ESP32-S3 R8 Wifi BLE 1.9 inch

Regular price €29,00 EUR
Regular price Sale price €29,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

  • 14 day return policy
  • Secure payment
  • DHLClimate-neutral shipping with DHL

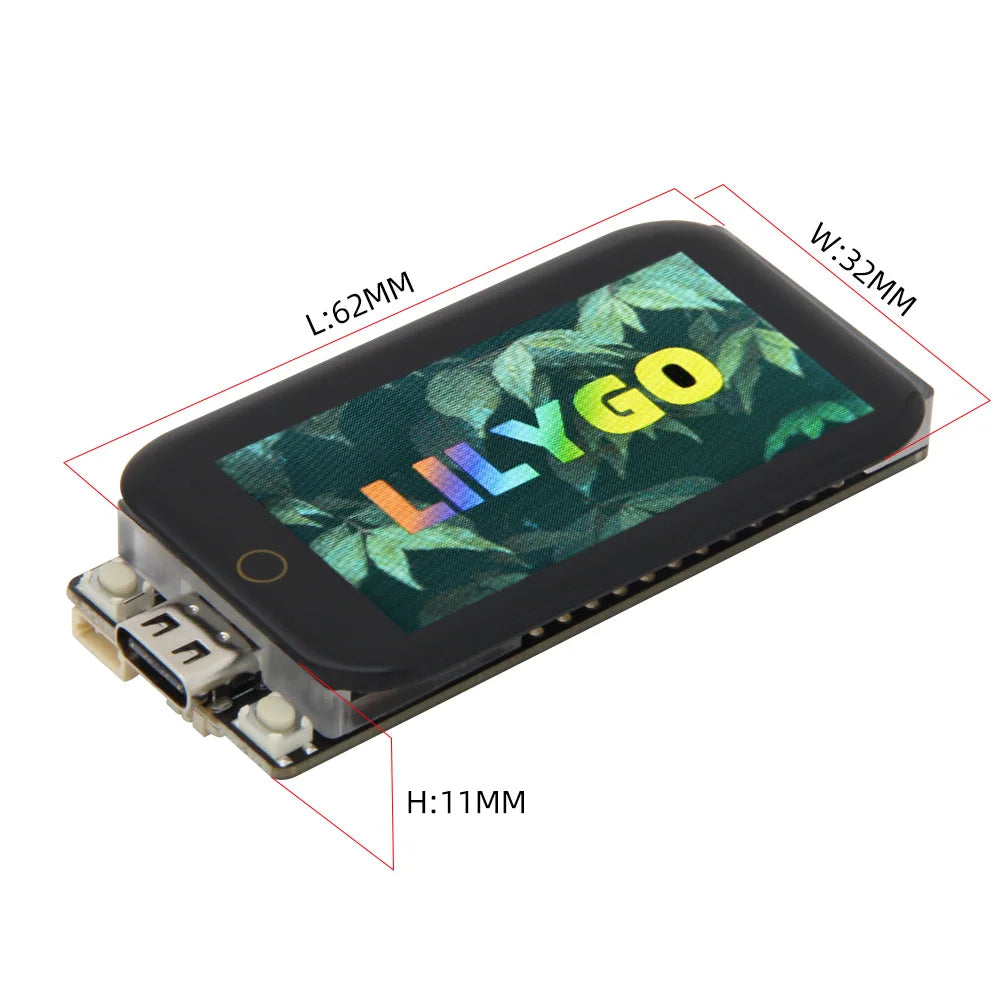

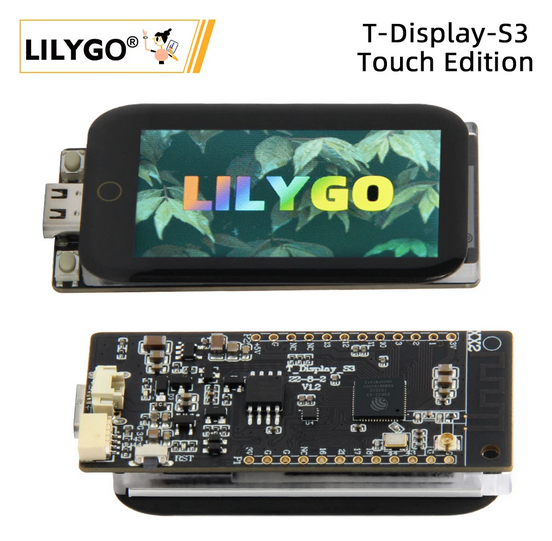

LilyGO's T-Display-S3 is a touch-sensitive LCD display that provides an easy way to display information. The built-in ST7789V IPS TFT LCD has a resolution of 170x320 pixels and is controlled via an 8-bit parallel interface. The T-Display-S3 is controlled by a powerful ESP32-S3 dual-core LX7 microprocessor and can be programmed with Arduino IDE or Micropython.

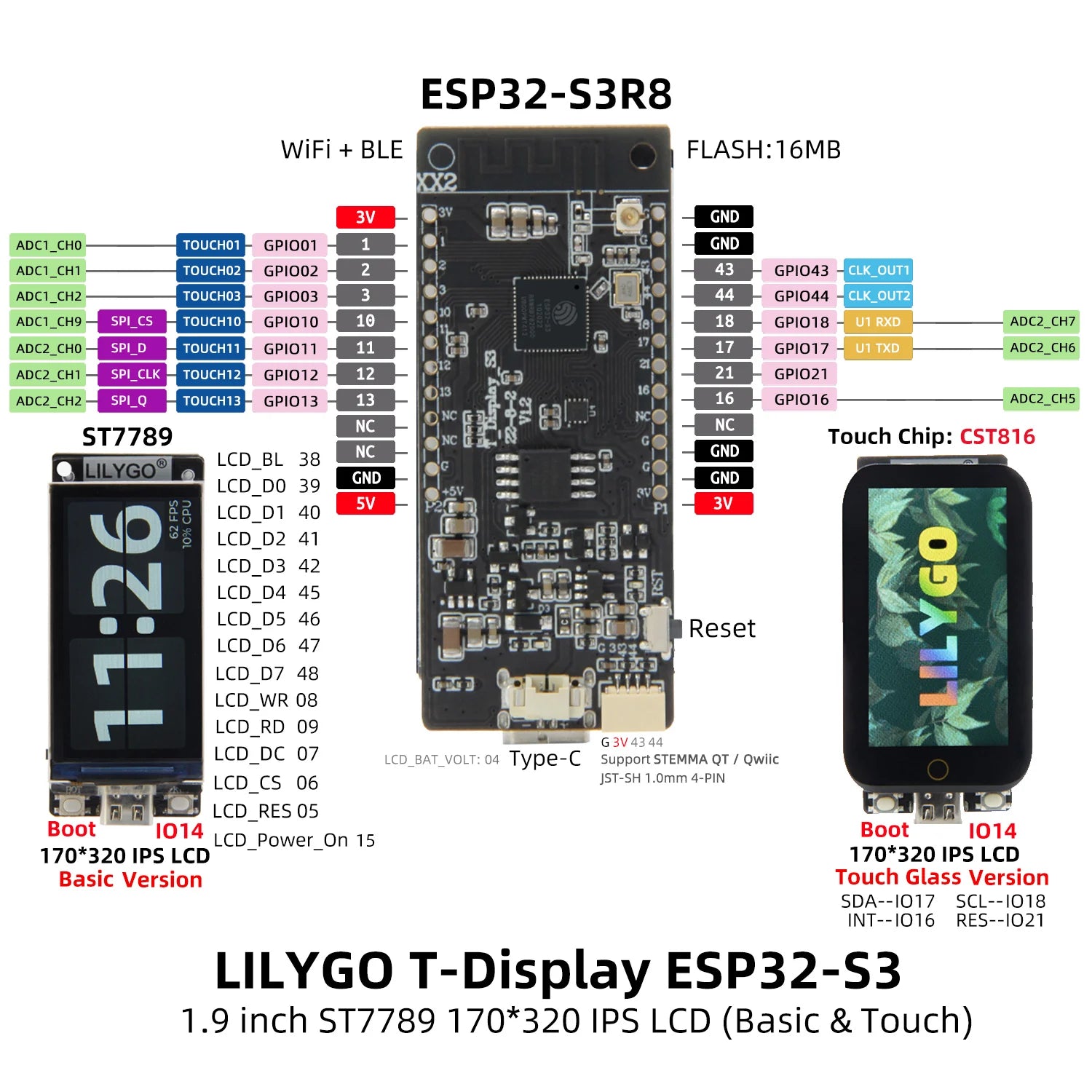

Product specifications:

  • MCU: ESP32-S3R8 dual-core LX7 microprocessor
  • Wireless connectivity : Wi-Fi 802.11, BLE 5+ BT mesh
  • Programming platform: Arduino-ide、Micropython
  • Flash: 16MB PSRAM: 8MB
  • Bat voltage detection: IO04
  • Onboard functions: Boot + Reset + IO14 button
  • USB: USB2.0 (USB A-USB C) cable

1.9" diagonal full color TFT display

  • Drive chip: ST7789
  • Resolution: 170(H)RGB x320(V)
  • 8-Bit Parallel Interface, working power supply: 3.3v

More information and sample projects can be found on Github .
