LILYGO® T-Display-S3 ESP32 WiFi and Bluetooth development board
LILYGO® T-Display-S3 ESP32 WiFi and Bluetooth development board
Regular price
€27,90 EUR
Regular price
Sale price
€27,90 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
- 14 day return policy
- Secure payment
Climate-neutral shipping with DHL

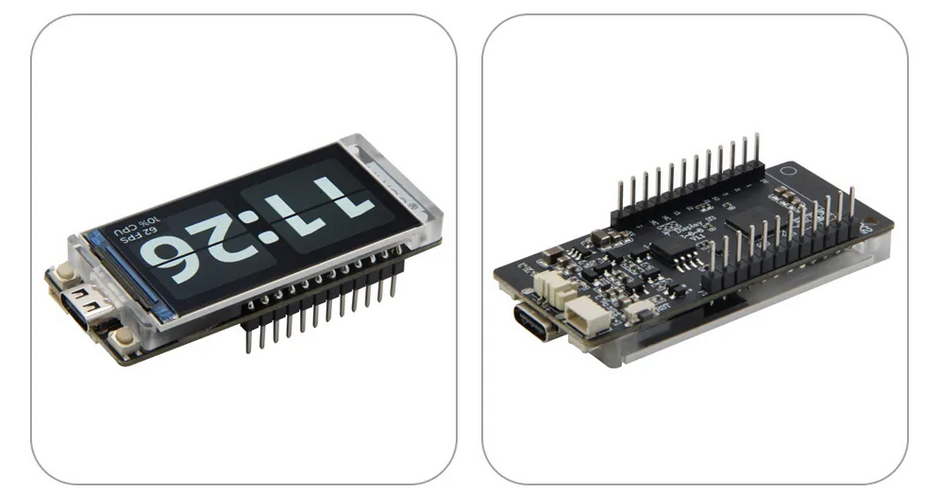

The LILYGO T-Display-S3 is an ESP32-S3 development board. The T-Display is equipped with a 1.9" 170x320 pixel IPS color screen and two programmable buttons. Communication takes place via the I8080 interface. The built-in ESP32-S3 has Bluetooth and WiFi connectivity. The module is programmed directly via the USB Type C port.
With the built-in display, this LILYGO T-Display-S3 ESP32 board is very versatile.
Technical details:
- Manufacturer: Lilygo
- MCU: ESP32-S3 R8 Dual core LX7
- Flash: 16Mbit
- PSRAM: 8MBit
- Connectivity: WiFi, BLE5.0, USB-C, 4pin SPI
- Display: ST7789 IPS LCD color display
- Display size: 1.9 inches
- Resolution: 170x320 pixels
- Programming languages: Arduino and MicroPython
- Programmable buttons: IO14
- Dimensions: 62 x 26 x 10mm
- Weight: 27g

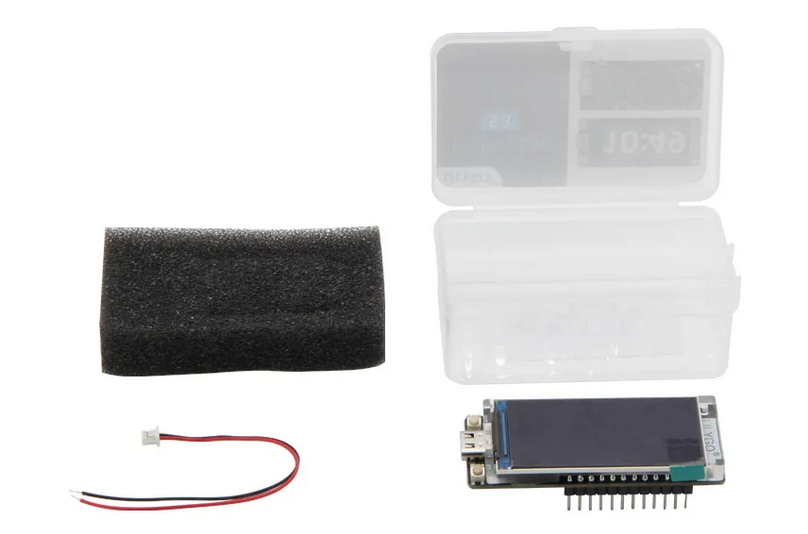

Scope of delivery:

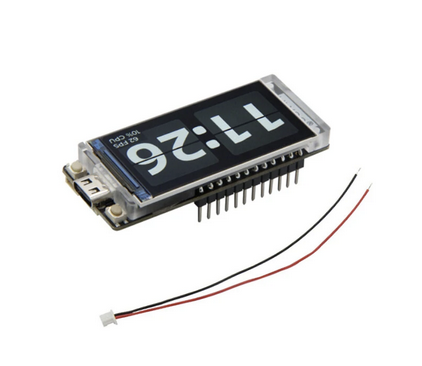

- 1x LilyGo T-Display-S3 ESP32-S3 with 1.9 inch display
- 2x 12pin pin headers already soldered
- 1x JST 1.25mm connection cable
You can find more information about the LILYGO T-Display-S3 ESP32 development board on Github .
Share
![Lilygo T-Display-S3 ESP32](http://makerversum.de/cdn/shop/files/2023-12-2402_18_28-Window.png?v=1703380734&width=1445)
![Lilygo T-Display-S3 ESP32](http://makerversum.de/cdn/shop/files/2023-12-2402_13_41-Window.png?v=1703380734&width=1445)

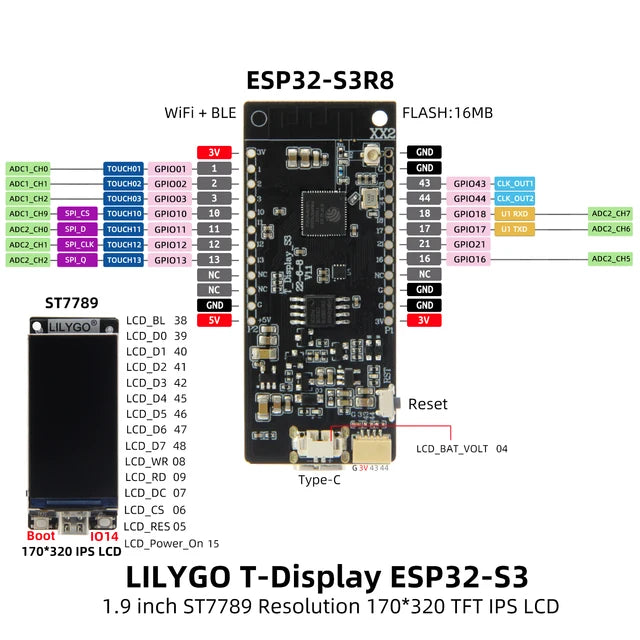

![Lilygo T-Display-S3 ESP32 Pin Layout](http://makerversum.de/cdn/shop/files/Se24adf3c25544f1d91f828719334cffeX.jpg_640x640q90.webp?v=1703380734&width=1445)
